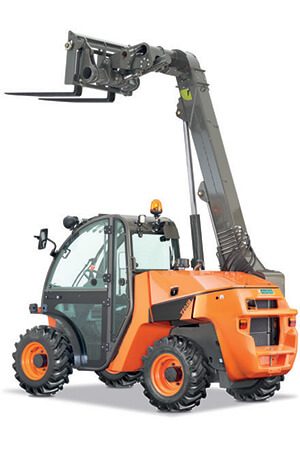

T204H

  • Load capacity: 2000 Kg
  • Maximum lift: 4200 mm

With a payload of 2000 kg (4,400 lb) and a height of 4.2 metres (13.8 feet), the T204H is the most compact and advanced telescopic handler of its class.
From the interior digital display, the operator will be able to control any part of the telehandler and interact with and access the diagnostics menu and all maintenance parameters easily, quickly and efficiently.

It is a highly versatile machine that can easily adapt to any terrain thanks to its 4x4x4 drive and the three steering modes: front-wheel, all-wheel and crab mode. A perfect combination that makes machine movements and approaches easier, especially on terrains with little room for maneuver. With its hydraulic functions and quick connect couplings for accessories and implements, you will be able to increase its possibilities and applications exponentially.

Thanks to the exceptionally designed cab that gives the operator a spacious and functional cab. The design of the cab and the placement of the boom give the operator a 360° view, making the work environment safe for all involved.

Load capacity

2000 Kg

Load capacity at maximum height

1500 Kg

Empty weight

4200 Kg

Transmission

Hydrostatic

Maximum lift

4200 mm

Maximum lift under maximum load

3750 mm

Maximum reach

2072 mm

Maximum load at maximum reach

1000 Kg

Brand

Kubota

Model

D1803-CR-T-E5B

Power

32.8 kW

Torque

150,5@1500

No. of cylinders

3

Emissions

Stage V – EPA Tier 4f

Noise level

104 dB(A)

Max. speed

20 Km/h

Maximum gradient

42 %

External turning radius

3042 mm

Steering modes

Two-wheel front steer, four-wheel and crab

Traction

4x4x4

Tyres

10/75-15.3

Flow rate

51.8 l/min

Working pressure

240 bar

Fuel

65 l

Hydraulic system

70 l

Service

Hydraulic, disc

Parking

Mechanical

Video

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
