• Max. working height: 10.8 m
  • Max. horizontal outreach: 6.2 m | 5.3 m
  • Basket capacity: 200 kg
  • Overall weight: 1,535kg

Download Specifications (PDF)

  • Quickly removable aluminum basket
  • Removable jib
  • Basket rotation
  • Blue lithium pack
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Radio remote control with interactive and multi-lingual display
  • Moment limiting device
  • Automatic center position of turret
  • Self-stabilizing system
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Drive speed system with safety control
  • Driving lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Electric pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
Max Working Height

Max Horizontal Outreach

5.3 m / 200 kg, 6.2 m / 120 kg

Basket Capacity

200 kg

Basket Dimension

1.3 m x 0.7 m x 1.1 m

Turret Rotation

Overall Width

Stowed Height

Stabilizer Footprint

2.26m x 2.57m

Overall Weight


Travel Speed

1.5 km/h

Max Gradeability


Combustion Engine

Honda GX390

Electric Motor

230V – 2.2kW


  • Track width adjusting system with independent axle
  • Air/Water tube
  • 110V power
  • Non-marking crawlers
  • Go-Home function
  • Custom paint work

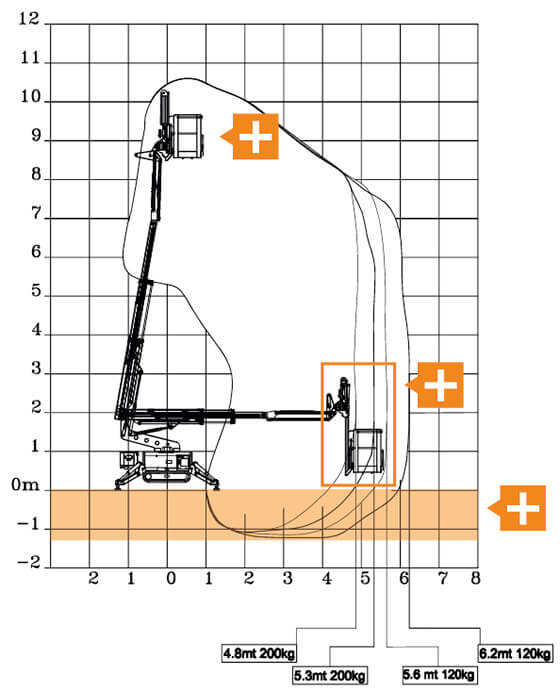

Working Envelope

Bluelift SA11P Working Envelope

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.

For more information, contact your sales representative.


Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
