S3970RT

  • Max. Working Height: 13.8m
  • Overall Width: 1.8m
  • Platform Capacity: 350kg
  • Weight: 3,790kg

Download Specifications (PDF)

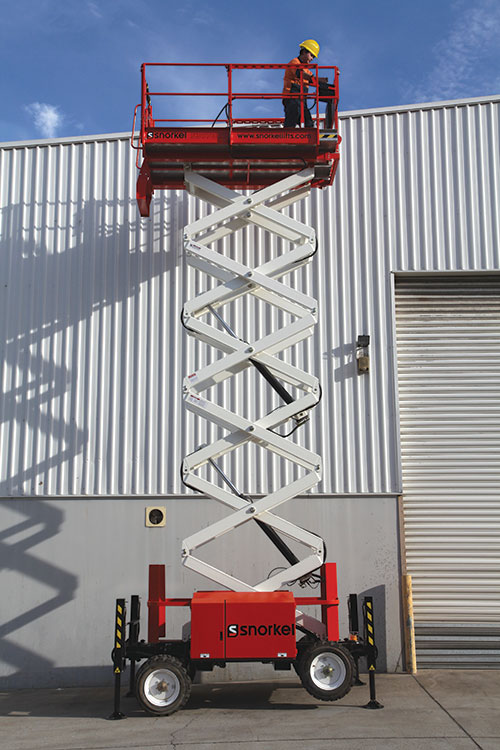

The largest in our compact rough terrain scissor family, the Snorkel S3970RT can lift 350kg to working height of 13.5m. Fitted with high grip types, a roll-out deck extension and auto-levelling outriggers as standard.

Standard Features

  • 4 wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty

Bi-energy version also available – see S3970BE for details.

Max Working Height

Max. Platform Height

Platform Size (stowed)

Platform Size (extended)

Extension Deck Length

Overall Width

Overall Length

Stowed Height

Min Height (guardrails folded)

Ground Clearance

Platform Capacity (SWL)

Max Drive Height

Max. Wind Speed

12.5m/s

Max Drive Speed (stowed)

Max Drive Speed (elevated)

Raise/Lower Time

Gradeability

Max Outrigger Levelling (front to rear)

Max Outrigger Levelling (side to side)

Inside Turning Radius

Outside Turning Radius

Tyres

27 x 10.5 – 15 non-marking

Controls

Drive System

Power Source

Weight

Turning Radius

S2270RT/S3370RT/S3970RT Turning Radius

Options

  • Special paint colors
  • Hydraulic generator 110V 2kW
  • Dual fuel
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm up)
  • Turf/Floatation tires
  • Snorkel OnSite™ telematics

Warranty

All Snorkel rough terrain scissors are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Australia is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
