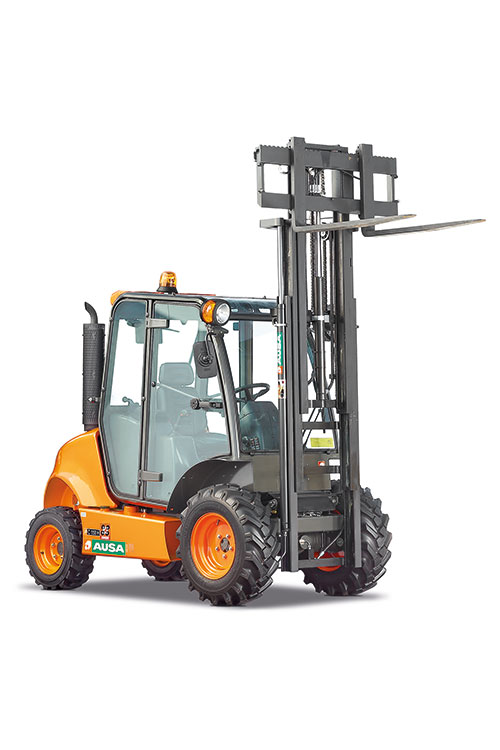

A capable compact 4×4 forklift with a 1,500 kg (3,000 lb) load capacity. Boasting a hydrostatic transmission; allowing for superior control in all environments. Looking for greater control and stability, opt for the COMPEN© 4×4 model.
With its hydrostatic transmission, maximum comfort and safety are assured. Thanks to the transmission brake, it prevents the machine from moving under its own weight on slopes, without you even touching the brake pedal.
| Load capacity | 1500 Kg |
|---|---|
| Load capacity to 500 mm | 1500 Kg |
| Load capacity to 600 mm | – |
| Empty weight | 2700 Kg |
| Transmission | Hydrostatic |
| Maximum lift | 4000 mm |
| Brand | Kubota |
| Model | V1505 – E4B |
| Power | 18.5 kW |
| Torque | 92,6@1700 |
| No. of cylinders | 4 |
| Emissions | Stage V – EPA Tier 4 |
| Noise level | 101 dB(A) |
| Max. speed | 20 Km/h |
| Maximum gradient | 25 % |
| External turning radius | 2570 mm |
| Traction | 4×2 / 4×4 Compen® |
| Tyres | 10.0/75-15.3 6.00-9 / 23×8.5-12 |
| Hydraulic circuit | Two gears pump |
| Flow rate | 22 l/min |
| Working pressure | 200 bar |
| Fuel | 45 l |
| Hydraulic system | 40 l |
| Service | Hydraulic, sealed, multi-disc |
| Parking | Mechanical, sealed, multi-disc |
| Fork carriage | FEM 2 |
| Carriage width | 1260 mm |
Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
