7.45

  • Max. Lifting Capacity: 4500kg
  • Max. Height: 7,1mt
  • Max. Total Unladen Weight: 8550kg

Download Specifications (PDF)

The Middle Range is suitable for companies seeking a ductile machine that, thanks to the new technologies applied, ensures management savings and high performance.

Features

  • Queen Cab: comfort, visibility and ergonomics
  • Stage 3A tier 3 engines
  • Gear pump or Load sensing pump
  • Suitable to meet all of your requirements
  • Chassis and boom: extraordinary strength
Height (mm)

2540

Width (mm)

2368

Gauge (mm)

1900

Ground Clearance (mm)

390

Front Overhang (mm)

1008

Pitch (mm)

2950

Rear Overhang (mm)

821

Length with Towing Hook (mm)

4849

Maximum Total Unladen Weight (kg)

8550

Number of Extracting Sections

1

Maximum Capacity (kg)

4500

Maximum Lifting Height (mt)

7,1

Maximum Horizontal Boom Extension (mt)

3,6

Boom Extension at Max Height (mt)

0,2

Forks Swinging Angle (°)

144

Hydraulic Oil Tank (l)

150

Diesel Oil Tank (l)

120

Connection For Equipment

EURO

Options

  • Tyres & Wheels
  • Engine
  • Hydraulics
  • Light & Headlamps
  • Mirrors
  • Brakes, Axles & Suspension
  • Boom
  • Cab
  • Tow
  • Chassis

Configuration

CLASSIC 55 CLASSIC 74 HLS 74 VPSe 100
Engine (kW/hp)
Deutz Stage IIIB 55,4/75,3/td> Deutz Stage IV 74,4/101 Deutz Stage IV 74,4/101 Deutz Stage IV 100/136
Transmission
Hydrostatic with optional mechanical gearbox Hydrostatic with optional mechanical gearbox Hydrostatic with optional mechanical gearbox Hydrostatic continuous variation
Service pump(l/min)
Gears 120@230 bar Gears 120@230 bar Load Sensing 152@250 bar Load Sensing 180@250 bar
Traction power(kg)
5200 5200 6000 10400
Shovel mode
standard standard standard standard

Diagram

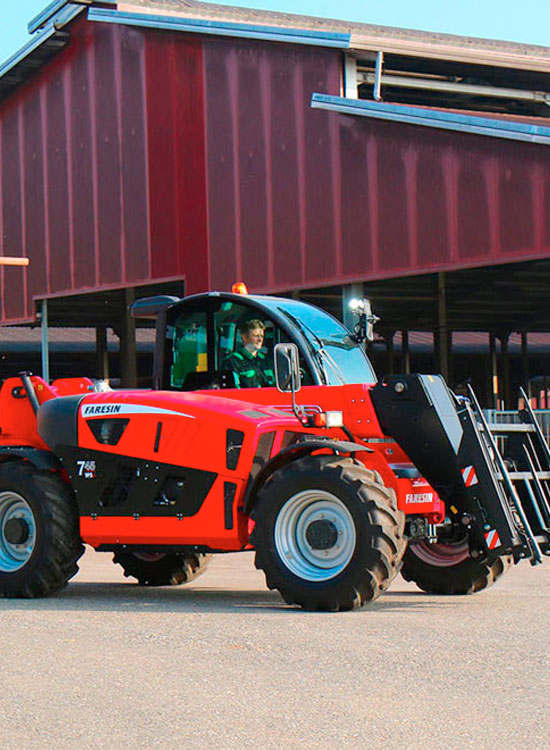

Faresin Middle Range 7.45

Video

Warranty

2 years full / 200hrs and 5 year structural.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
