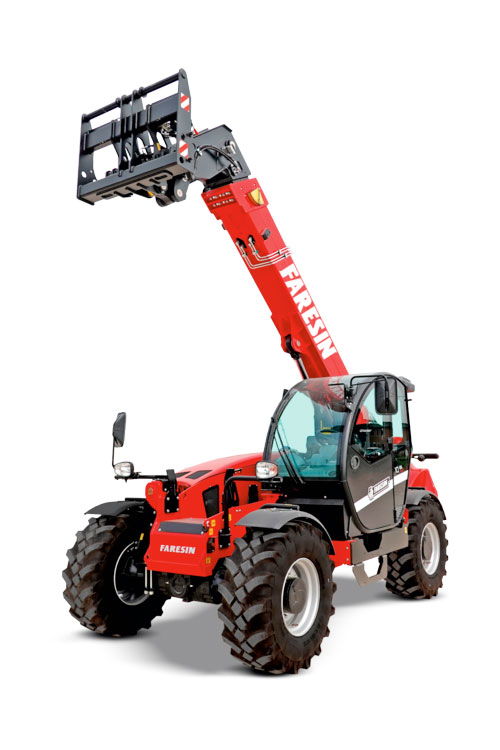

The Heavy Duty range was born for the agricultural, housing and construction sectors and offers power, precision and control with great handling capacities.
| Height (mm) | 2550 |
|---|---|
| Width (mm) | 2334 |
| Gauge (mm) | 1840 |
| Ground Clearance (mm) | 410 |
| Front Overhang (mm) | 1673 |
| Pitch (mm) | 2950 |
| Rear Overhang (mm) | 1265 |
| Length with Towing Hook (mm) | 5556 |
| Maximum Total Unladen Weight (kg) | 11250 |
| Number of Extracting Sections | 1 |
| Maximum Capacity (kg) | 6500 |
| Maximum Lifting Height (mt) | 9,5 |
| Maximum Horizontal Boom Extension (mt) | 5,4 |
| Boom Extension at Max Height (mt) | 0,45 |
| Forks Swinging Angle (°) | 149 |
| Hydraulic Oil Tank (l) | 150 |
| Diesel Oil Tank (l) | 120 |
| Connection For Equipment | FH HEAVY |
| CLASSIC 74 | HLS 74 | VPSe 100 |
|---|---|---|
| Engine (kW/hp) | ||
| Deutz Stage IV 74,4/101 | Deutz Stage IV 74,4/101 | Deutz Stage IV 100/136 |
| Transmission | ||
| Hydrostatic with mechanical gearbox | Hydrostatic with mechanical gearbox | Hydrostatic continuous variation |
| Service pump(l/min) | ||
| Gears 120@230 bar | Load Sensing 152@250 bar | Load Sensing 180@250 bar |
| Traction power(kg) | ||
| 8500 | 9000 | 10400 |
| Shovel mode | ||
| standard | standard | standard |
2 years full / 200hrs and 5 year structural.
