SL30RTE

Max. Working Height: 11.0m
Overall Width: 2.13m
Platform Capacity: 590kg
Weight: 3,450kg

Add to quote list

Features
Specs
Levelling Capabilities
Options
Video
Warranty

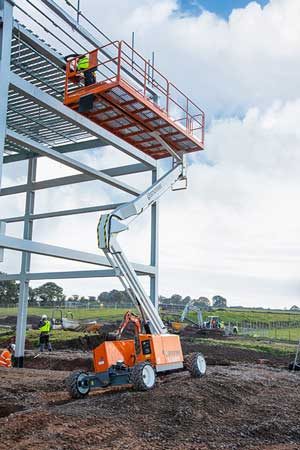

The Snorkel SL30RTE all-electric Speed Level delivers powerful endurance on all terrains. Capable of automatic self-leveling on gradients up to 50%, this lift is designed to work at height on sloped ground. Its powerful 4-wheel drive can be driven up to 0.5 mph (0.8km/h) at full height.

Standard Features

Two lithium-ion battery systems 11.5kWh
Automatic powered platform levelling
Powerful 4 wheel drive
Oscillating front axle
High grip, open tread deck
Descent alarm
High grip non-marking all terrain tyres
Digital proportional controls
Power line to platform
Fold-down guardrails
All motion alarm
Hour meter & on-board diagnostics display
Flashing amber light
2000 charging cycles / 2 year* lithium battery warranty
2 year parts & labour, 5 year structural warranty

*whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Max Working Height	11.0m
Max. Platform Height	9.0m
Platform Size (stowed)	1.72m x 4.23m
Platform Size (extended)	n/a
Extension Deck Length	n/a
Overall Width	2.13m
Overall Length	4.3m
Stowed Height	2.6m
Min Height (guardrails folded)	1.7m
Chassis Ground Clearance	305mm
Axle Ground Clearance	195mm
Platform Capacity (SWL)	590kg
Max Drive Height	9.0m
Max. Wind Speed	12.5m/s
Max Drive Speed (stowed)	5.4 km/h
Max Drive Speed (elevated)	0.8km/h
Raise/Lower Time	24/36 seconds
Gradeability	50%
Max Levelling (front to rear)	9°
Max Levelling (side to side)	13°
Inside Turning Radius	3.9m
Outside Turning Radius	5.64m
Tyres	26 x 12.00 – 12 foam filled
Controls	Digital Proportional Joystick
Drive System	4 wheel drive with hydraulic motors and flow dividers
Power Source	11.5kWh Li-ion batteries with integrated BMS
Operating Temperature	(-)25°C to (+)60°C
Motor	AC electric motor
Charger	high frequency smart on-board 50A battery charger
Weight	3,450kg

Levelling Capabilities

Options

Special paint colors
Environmental hydraulic oil
Additional 5.75kWh battery system
Tunnel package (RTE)
Extra range tunnel package (RTE)
Work light package
Driving light package
Extreme environment package
Snorkel OnSite™ telematics

Video

Warranty

All Snorkel Speed Level lifts are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Australia is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
