S3370BE

  • Max. Working Height: 12.0m
  • Overall Width: 1.8m
  • Platform Capacity: 454kg
  • Weight: 3,919kg

Download Specifications (PDF)

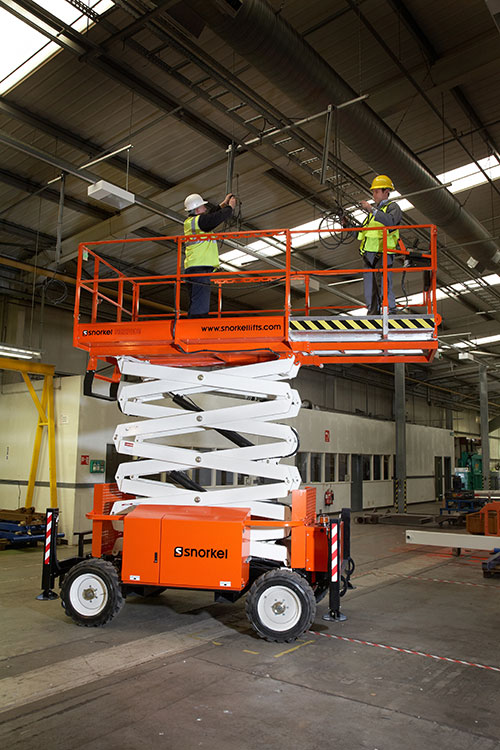

The Snorkel S3370BE is a compact scissor lift which can be operated on either its diesel engine, for outdoor rough terrain work, or switched to DC electric for working indoors. Fitted with high grip, non-marking types as standard, the S3370BE provides the ultimate in jobsite flexibility.

Standard Features

  • DC & diesel power – for indoor & outdoor work
  • 4 wheel drive
  • Roll-out deck extension
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty

Rough terrain diesel version also available – see S3370RT for details.

Max Working Height

Max. Platform Height

Platform Size (stowed)

Platform Size (extended)

Extension Deck Length

Overall Width

Overall Length

Stowed Height

Min Height (guardrails folded)

Ground Clearance

Platform Capacity (SWL)

Max Drive Height

Max. Wind Speed

12.5m/s

Max Drive Speed (stowed)

Max Drive Speed (elevated)

Raise/Lower Time

Gradeability

Max Outrigger Levelling (front to rear)

Max Outrigger Levelling (side to side)

Inside Turning Radius

Outside Turning Radius

Tyres

Controls

Drive System

Power Source

Weight

Turning Radius

S2770BE/S3370BE/S3970BE Turning Radius

Options

  • Special paint colors
  • Hydraulic generator 110V 2kW
  • Nylon spreader pads (set of 4)
  • Environmental hydraulic oil
  • Cold weather package (block heater + battery warm up)
  • Snorkel OnSite™ telematics

Warranty

All Snorkel rough terrain scissor lifts are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Ahern Australia is authorized to carry our Snorkel warranty repairs. For further details, please visit our Warranty page.

Specifications subject to change without notice. Photos and diagrams on this website are for promotional purposes only. Refer to appropriate operators manual for detailed instructions on the proper use and maintenance.
