TM12 | Ahern Australia

5.6m

Working Height

227kg

Platform Capacity

830kg

Weight

TM12

The Snorkel TM12 is the original self-propelled mast lift. Recently enhanced with hydraulic powered descent and a 0.5m roll-out deck extension as standard, the TM12 continues to set the standard in low-level elevating work platforms. A versatile and compact self-propelled mast lift – perfect for maintenance duties as it fits easily through a single doorway and can be carried in passenger elevators.

Specifications

Max Working Height

5.6m

Max Platform Height

3.6m

Platform Size (stowed)

0.68m x 0.99m

Platform Size (extended)

0.74m x 1.46m

Extension Deck Length

0.5m

Overall Width

0.76m

Overall Length

1.34m

Stowed Height

1.62m

Ground Clearance

76mm

Platform Capacity (SWL)

227kg

Max Drive Height

3.6m

Max Wind Speed

12.5m/s

Max Drive Speed (stowed)

3.2km/h

Max Drive Speed (elevated)

0.43 km/h

Raise/Lower Time

16/19 seconds

Gradeability

25%

Max Operating Slope (side to side)

1.5º

Max Operating Slope (front to back)

2º

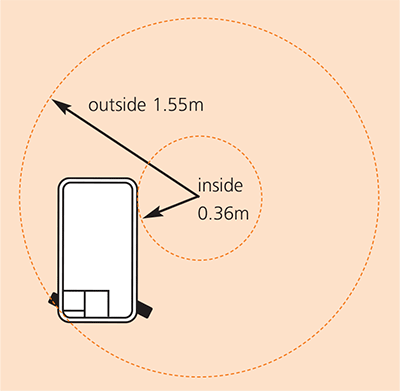

Inside Turning Radius

0.36m

Outside Turning Radius

1.55m

Tyres

279mm. non-marking rubber

Parking Brake

2 wheel, spring-applied, hydraulically-released with manual overdrive

Drive System

dual front hydraulic motors

Controls

proportional

Power Source

24V 4hp DC electric motor 4-220 Ah batteries

Battery Charger

18 AMP

Weight

830kg

Standard Features

Roll-out deck extension
Hydraulically powered descent
Proportional controls
Saloon-door style entry gates
Descent and tilt alarms
Emergency lowering at chassis controls
Non-marking rubber tyres
Crane lift points
2 persons indoor
1 person outdoor
Selectable motion alarm
Integrated battery charger 90V-240V 25A
Hour meter & on-board diagnostics display
2 year parts & labour, 5 year structural warranty
CE approved

Options

2° side to side operating slope upgrade (machine weight 910kg)

Environmental hydraulic oil

Snorkel OnSite™ Telematics

Special paint colours

Working Envelope

Downloads

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.

VIDEO

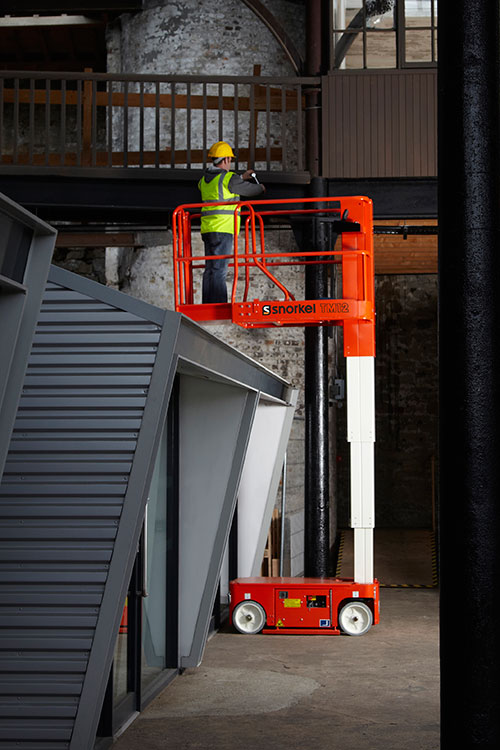

PHOTO GALLERY
