SL30RT | Ahern Australia

11.0m

Working Height

590kg

Platform Capacity

3,400kg

Weight

SL30RT

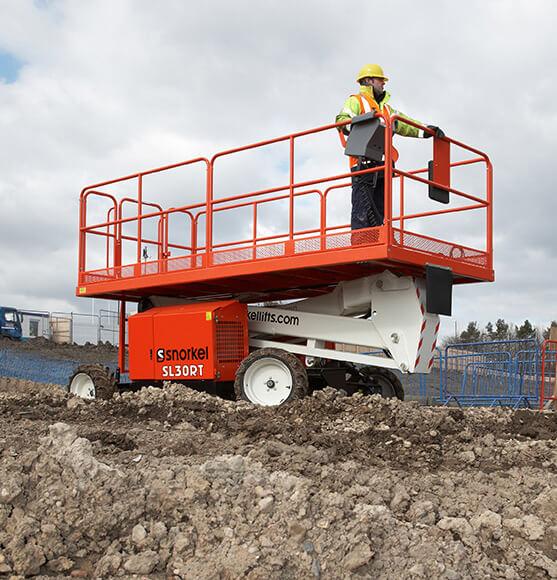

The Snorkel SL30RT Speed Level sigma boom lift makes the grade. Automatic self-leveling without outriggers offers a stable platform that can level up to 13° from side-to-side and up to 9° from front-to-back. Drivable at full height on powerful 4-wheel drive, the SL30RT tackles all terrains with ease, even on compound slope.

Specifications

Max. Working Height

11.0m

Max. Platform Height

9.0m

Platform size (stowed)

1.72m x 4.23m

Platform size (extended)

n/a

Deck Extension

n/a

0verall Width

2.13m

Overall Length

4.3m

Stowed Height

2.6m

Min height (guardrails folded)

1.7m

Chassis Ground Clearance

305mm

Axle Ground Clearance

195mm

Platform Capacity (SWL)

590kg

Max. Drive Height

9.0m

Max. Wind Speed

12.5m/s

Max. Drive Speed (stowed)

6.4 km/h

Max. Drive Speed (elevated)

0.8 km/h

Raise/Lower Time

24/36 seconds

Gradeability

50%

Max. outrigger Leveling (front to rear)

9º

Max. Outrigger Leveling (side to side)

13º

Inside turning radius

3.9m

Outside Turning Radius

5.64m

Tyres

26 x 12.00 – 12 foam filled

Controls

proportional joystick

Drive System

4 wheel drive with hydraulic motors and flow dividers

Power Source

Kubota D-902 water-cooled diesel engine – Tier 4 Final

Weight

3,400kg

Standard Features

Automatic powered platform levelling
Powerful 4-wheel drive
Oscillating front axle
High grip, open tread deck (SL30RT)
Roll-out deck extension (SL26RT)
Descent alarm
High grip all-terrain tyres
Dual multi-disc brakes
Proportional controls
Power line to platform
Fold-down guardrails
All motion alarm
Flashing amber light
Hour meter & on-board diagnostics display
Horn
2 year parts & labour, 5 year structural warranty
CE approved

Options

Aluminium platform floor (SL26RT only)

Diesel exhaust scrubber

Environmental hydraulic oil

Extreme Environment Package

Hydraulic generator 110V/240V 3.5kW

Non-marking tyres

Snorkel OnSite™ Telematics

Special paint colours

Tunnel package (RT)

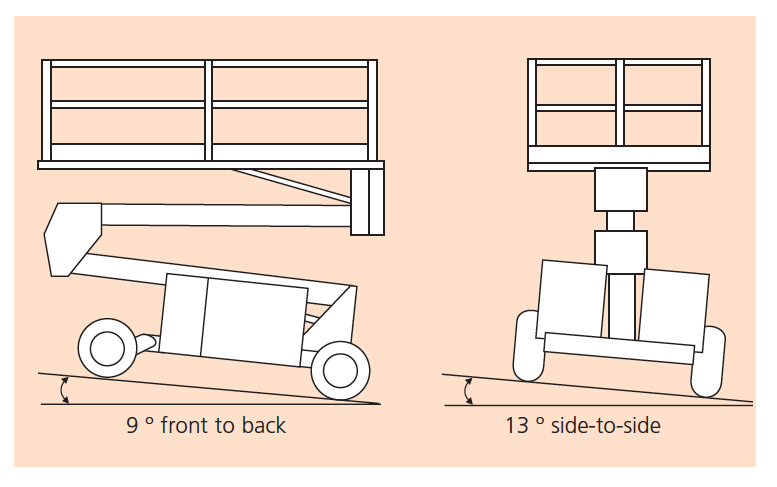

Leveling Capabilities

Accessory Packages

Downloads

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Metric)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.
