SA16 SPIDER LIFT
15.8m

Working Height

230kg

Platform Capacity

1,900kg

Weight

SA16

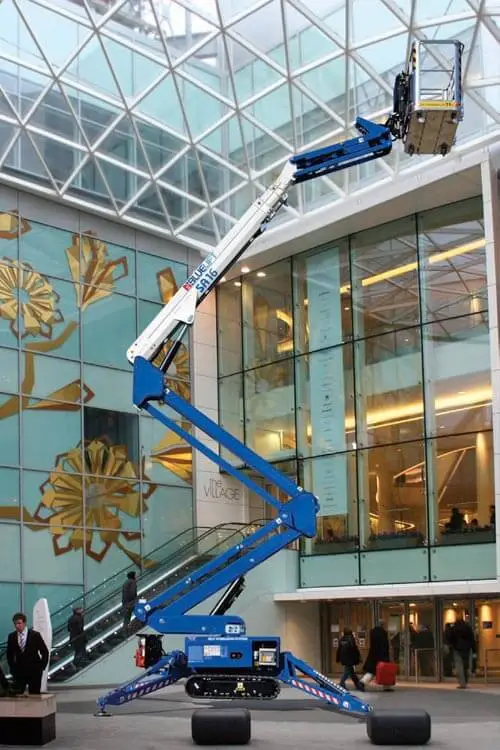

The Bluelift SA16 provides a strong balance of reach and agility, offering reliable performance in both indoor and outdoor tasks. Its articulated boom and compact tracked chassis help operators overcome obstacles while maintaining stability and control.

Max. working height
15.8m

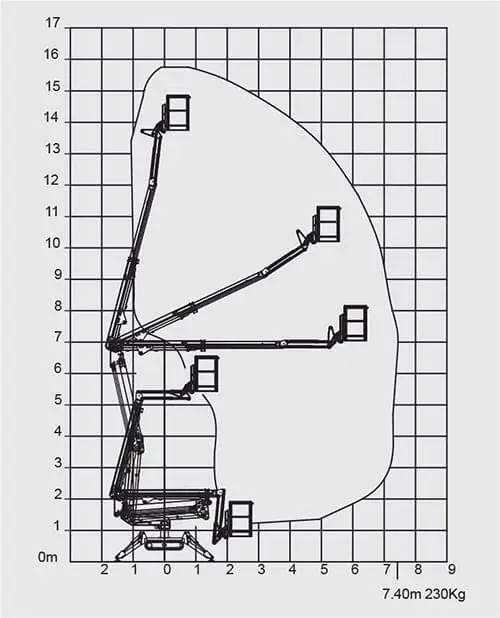

Max. horizontal outreach
7.4m / 230kg
Basket Capacity
230kg
Basket Dimension
1.3m x 0.7m x 1.1m
Turret Rotation
340˚
Overall Weight
1,375kg
Travel Speed
1.5km/h
Max. Gradeability
28%
Combustion Engine
Honda iGX
Electric Motor
230V – 2.2kW
  • Quickly removable aluminum basket
  • Basket rotation
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Cable remote control with interactive and multi-lingual display
  • Load limiting device
  • Automatic center position of turret
  • Self Stabilizing system
  • Automatic START & STOP of engines and RPM control
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Driving lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Hand pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
  • Produced according to EN280 norm and international safety regulation
  • All Bluelift products are sold with a 1 year parts and labor, and 5 year structural warranty. The electronic card is covered by a 2 year warranty.
No options associated with this product.

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Snorkel GuardTM Brochure (PDF)

English

Lifting Capacities ENGLISH Metric

English

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Specification Sheet (Imperial)

English Français Español

Emergency Descent Procedure

English

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card. For more information, contact your sales representative.
