23.3m

Working Height

907kg

Platform Capacity

11,566kg

Weight

S9070RT-HC

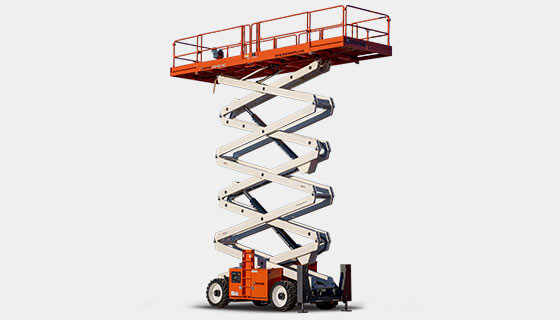

The Snorkel S9070RT-HC is the largest ultra-capacity rough terrain scissor lift in North America. Featuring a twin extension deck as standard, it combines a large platform working area with an extra-wide pallet gate and high lifting capacity for increased productivity on the job. Added rough terrain capabilities makes the S9070RT-HC a premier performer on all jobsites.
This model is not yet available in this region. For further details, please contact us.

Max. working height
23.3m
Max. platform height
21.3m
Platform size (stowed)
5.49m x 2.28m
Platform size (extended)
8.23m x 2.28m
Deck extension length
1.37m
Overall length
4.87m
Overall width
2.28m
Min. height (guardrails folded)
2.5m
Stowed height
3.43m
Ground clearance
356mm
Platform capacity (SWL)
907kg
Max. drive height
13.1m
Max. wind speed
12.5m/s
Max. drive speed (elevated)
0.96km/h
Max. drive speed (stowed)
6.7km/h
Raise / lower time
70 / 40 seconds
Gradeability
50%
Max. stabilizer leveling (front to rear)
6º
Max. stabilizer leveling (side to side)
12°
Inside turning radius
2.4m
Outside turning radius
5.6m
Tyres
13 x 36 foam filled
Controls
Proportional joystick
Drive system
4 wheel drive
Power source
Kubota diesel
Weight
11,566kg
Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the Buyer’s responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator’s manual for detailed instructions on the proper use and maintenance.
  • 4 wheel drive
  • Dual powered extension decks
  • 4 hydraulic stabilizers with automatic leveling
  • Foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Locking, oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty

*whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

No options associated with this product.

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.
