17.9m

Working Height

680kg

Platform Capacity

7,484kg

Weight

S9053RT

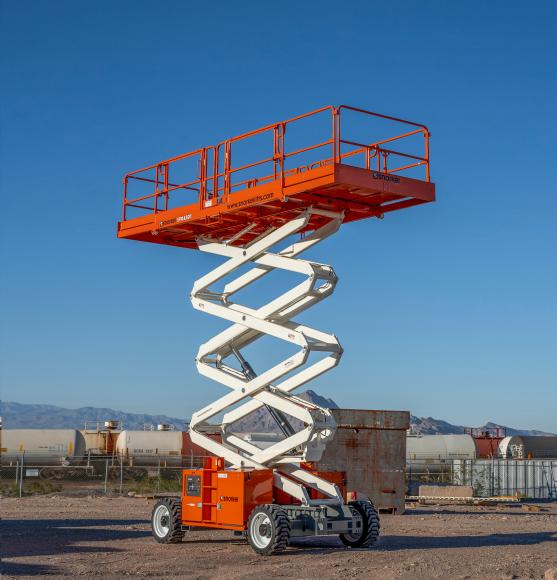

The new Snorkel S9053RT high capacity rough terrain scissor lift is a high-powered performer. Designed to tackle tough terrain with ease, its terrain capabilities is coupled with a large roll-out extension deck. This scissor lift features stabilizers as standard for sturdy versatility on all terrain. With high capacity and a sturdy construction, the S9053RT improves productivity on the job.

Max. working height
17.9m
Max. platform height
15.9m
Platform size (stowed)
3.58m in x 2.28m
Deck extension length
1.44m
Overall width
2.28m
Min. height (guardrails folded)
2.33m
Stowed height
3.2m
Ground clearance
274mm
Platform capacity (SWL)
680kg
Max. drive height
13.1m
Max. wind speed
12.5m/s
Max. drive speed (elevated)
0.8km/h
Max. drive speed (stowed)
6.7km/h
Raise / lower time
55 / 50 seconds
Gradeability
50%
Max. stabilizer leveling (front to rear)
Max. stabilizer leveling (side to side)
12°
Inside turning radius
2.03m
Outside turning radius
5.28m
Tires
12 x 33 foam filled
Controls
Proportional joystick
Drive system
4 wheel drive
Power source
Kubota diesel
Weight (without outriggers)
7,484kg
Weight (with outriggers)
8,829kg
  • 4 hydraulic stabilizers with automatic levelling
  • 4 wheel drive
  • Single powered deck extension
  • Foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Locking, oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Flashing amber light (x2)
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
12kW generator package
Cold weather package (block heater + battery warm up)
Dual fuel
Dual manual extension decks
Dual powered extension decks
Environmental hydraulic oil
Hydraulic generator 110V 2kW
Non-marking foam filled tires
Nylon spreader pads (set of 4)
Special paint colors

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.
