15.1m

Working Height

680kg

Platform Capacity

7,500kg

Weight

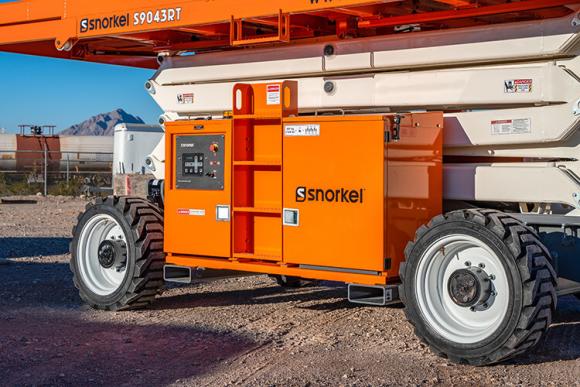

S9043RT

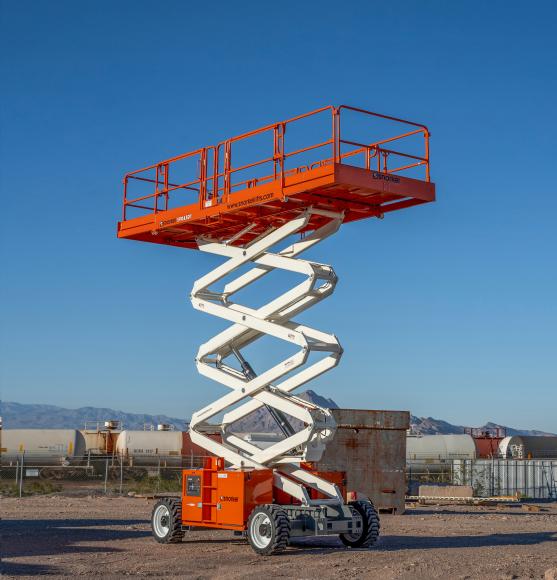

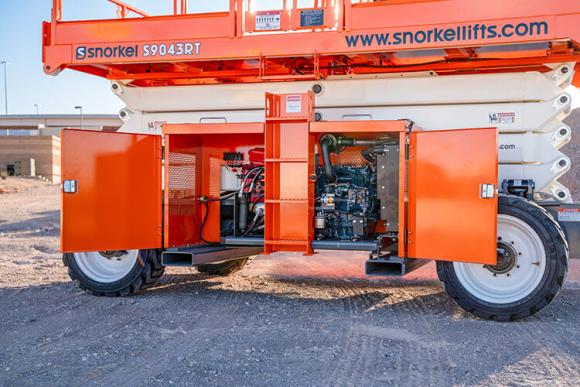

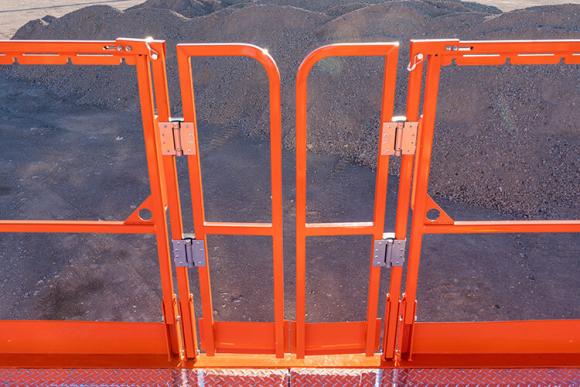

The new Snorkel S9043RT high capacity rough terrain scissor lift delivers high performance. Equipped with a spacious roll-out deck, this scissor lift offers excellent lift capacity. Superb terrain capabilities can easily handle tough jobsite conditions on powerful 4-wheel drive. The S9043RT is packed with operator benefits such as saloon-entry gates and swing-out engine trays.

Max. working height
15.1m
Max. platform height
13.1m
Platform size (stowed)
3.58m x 2.28m
Deck extension length
4.95m x 2.28m
Overall width
2.25m
Min. height (guardrails folded)
2.18m
Stowed height
2.99m
Ground clearance
274mm
Platform capacity (SWL)
680kg
Max. drive height
13.1m
Max. wind speed
12.5m/s
Max. drive speed (elevated)
6.7km/h
Max. drive speed (stowed)
0.8km/h
Raise / lower time
50 / 45 seconds
Gradeability
50%
Max. stabilizer leveling (front to rear)
Max. stabilizer leveling (side to side)
12°
Inside turning radius
2.03m
Outside turning radius
5.28m
Tires

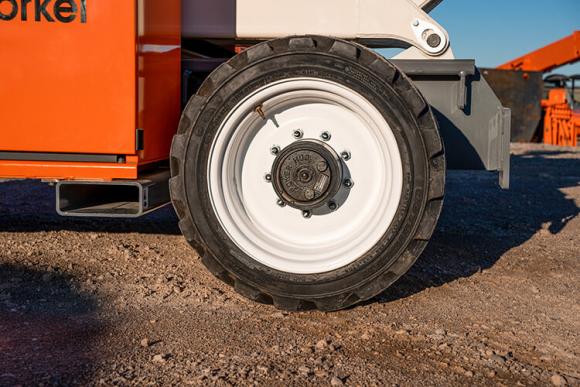

12 x 33 foam filled
Controls

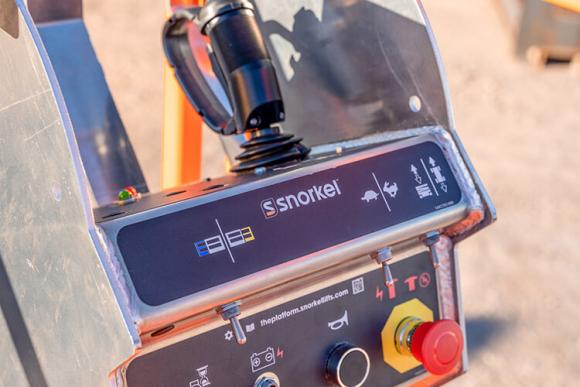

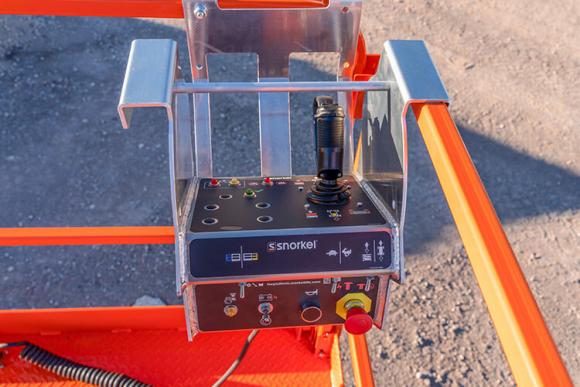

Proportional joystick
Drive system
4 wheel drive
Power source
Kubota diesel
Weight (without outriggers)
7,500kg
Weight (with outriggers)
8,147kg
  • 4 wheel drive

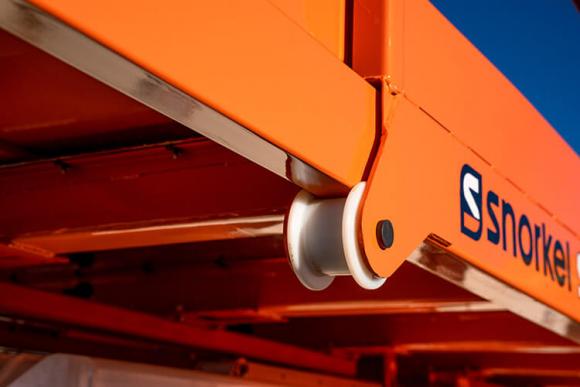

  • Single powered deck extension
  • Foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Locking, oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Flashing amber light (x2)

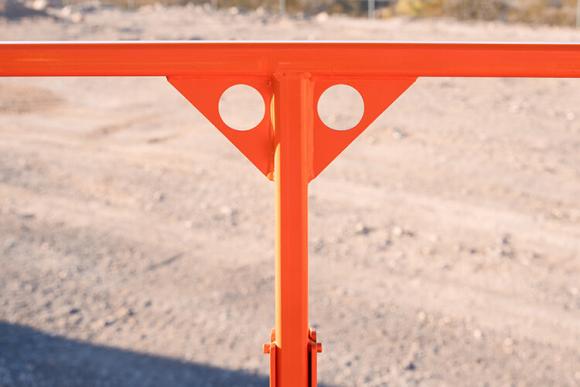

  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
12kW generator package

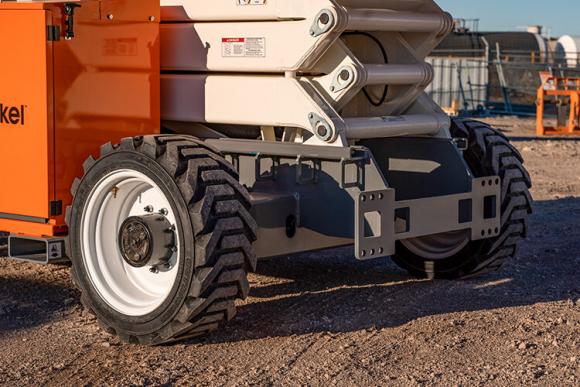

4 hydraulic stabilizers with automatic levelling
Cold weather package (block heater + battery warm up)
Dual fuel
Dual manual extension decks
Dual powered extension decks
Environmental hydraulic oil
Hydraulic generator 110V 2kW
Non-marking foam filled tires
Nylon spreader pads (set of 4)
Special paint colors

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.
