11.8m

Working Height

1,134kg

Platform Capacity

6,759kg

Weight

S9033RT

The new Snorkel S9033RT high capacity rough terrain scissor lift measures up. A spacious roll-out deck extension with superb lift capacity makes it easy to work at height. Excellent ground clearance, a tight inside turning radius and powerful 4-wheel drive tackle rough terrain with ease.

Max. working height
11.8m
Max. platform height
9.8m
Platform size (stowed)
3.58m x 2.28m
Deck extension length
1.44m
Overall width
2.28m
Min. height (guardrails folded)
1.98m
Stowed height
2.97m
Ground clearance
274mm
Platform capacity (SWL)
1,134kg
Max. drive height
9.75m
Max. wind speed
12.5m/s
Max. drive speed (elevated)
0.8km/h
Max. drive speed (stowed)
6.7km/h
Raise / lower time
45 / 30 seconds
Gradeability
50%
Max. stabilizer leveling (front to rear)
7°
Max. stabilizer leveling (side to side)
12°
Inside turning radius
2.03m
Outside turning radius
5.28m
Tyres
12 x 33 foam filled
Controls
Proportional joystick
Drive system
4 wheel drive
Power source
Kubota diesel
Weight (without outriggers)
6,759kg
Weight (with outriggers)
7,401kg
  • 4 wheel drive
  • Single powered deck extension
  • Foam filled tires
  • Proportional controls
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Fold-down guardrails
  • Flashing amber light (x2)
  • Locking, oscillating axle
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Flashing amber light (x2)
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
12kW generator package
4 hydraulic stabilizers with automatic levelling
Cold weather package (block heater + battery warm up)
Dual fuel
Dual manual extension decks
Dual powered extension decks
Environmental hydraulic oil
Hydraulic generator 110V 2kW
Non-marking foam filled tires
Nylon spreader pads (set of 4)
Special paint colors

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.

Add to Quote
VIDEO
PHOTO GALLERY

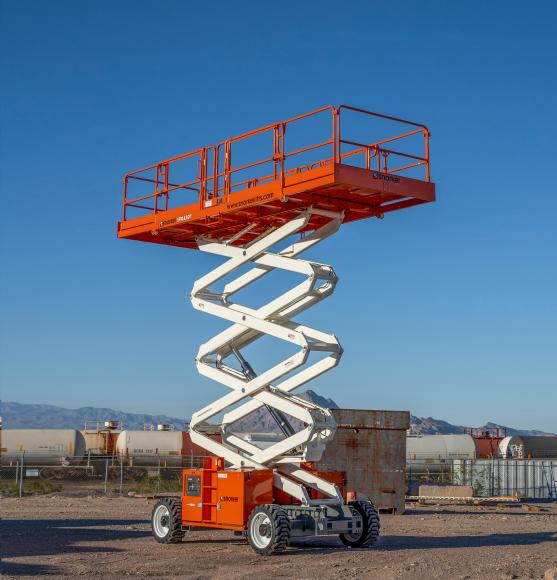

Snorkel S9033RT rough terrain scissor lift
