11.4m

Working Height

1,814kg

Platform Capacity

6,803kg

Weight

S9031RT-HC

The Snorkel S9031RT-HC ultra-capacity rough terrain scissor lift is ideal for heavy lifting. Its robust construction offers best-in-class lift capacity. With a twin extension deck and pallet gate, offering an extra-wide 6.5 ft. (1.9m) opening, tools and materials can be easily lifted. The S9031RT-HC also features excellent off-road capability, suitable for tough environments.

Max. working height
11.4m
Max. platform height
9.4m
Platform size (stowed)
4.87m 2.28m
Platform size (extended)
8.23m x 2.28m
Deck extension length
1.37m
Overall length
4.87m
Overall width
2.28m
Min. height (guardrails folded)
1.9m
Stowed height
2.77m
Ground clearance
356mm
Platform capacity (SWL)
1,814kg
Max. drive height
31 ft
Max. wind speed
12.5m/s
Max. drive speed (elevated)
0.96km/h
Max. drive speed (stowed)
6.7km/h
Raise / lower time
30 / 20 seconds
Gradeability
50%
Max. stabilizer leveling (front to rear)
6º
Max. stabilizer leveling (side to side)
12º
Inside turning radius
2.4m
Outside turning radius
5.6m
Tyres
13 x 36 foam filled
Controls
Proportional joystick
Drive system
4 wheel drive
Power source
Kubota diesel
Weight
6,803kg
  • 4 wheel drive
  • Dual powered extension decks
  • 4 hydraulic stabilizers with automatic leveling
  • Non-marking foam filled tires
  • Proportional controls
  • Foam filled tires
  • Power line to platform
  • Platform overload system
  • Drive motion alarm
  • Descent alarm
  • Locking, oscillating axle
  • Fold-down guardrails
  • Flashing amber light
  • Hour meter & on-board diagnostics display
  • Manual lowering valve
  • Dual lanyard attachment points
  • 2 years parts & labor, 5 year structural warranty
12kW generator package
Cold weather package (block heater + battery warm up)
Dual fuel
Environmental hydraulic oil
Hydraulic generator 110V 2kW
Non-marking foam filled tires
Nylon spreader pads (set of 4)
Special paint colors

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.

Add to Quote
VIDEO
PHOTO GALLERY

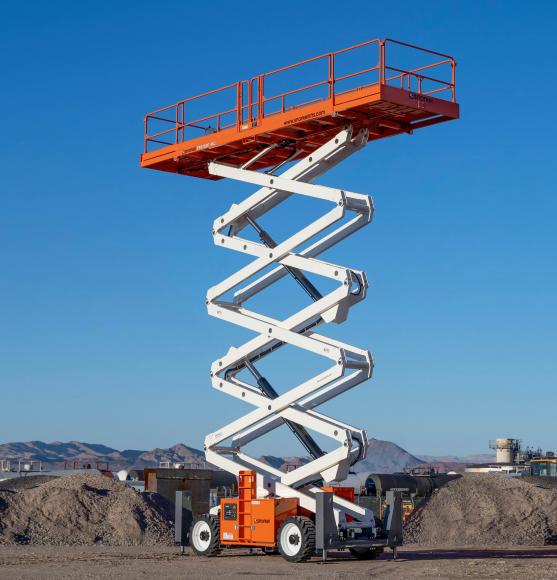

Snorkel S9031RT-HC rough terrain scissor lift
