12.0m

Working Height

454kg

Platform Capacity

3,620kg

Weight

S3370RT

The Snorkel S3370RT is a compact rough terrain scissor lift which delivers excellent 4 wheel drive performance from compact dimensions. Features a roll-out deck extension, high grip types and auto-level outriggers as standard.

Max Working Height
12.0m
Max Platform Height
10.0m
Platform Size (stowed)
1.6m x 2.8m
Platform Size (extended)
1.6m x 4.0m
Deck Extension
1.2m
Overall Width
1.8m
Overall Length
3.4m
Stowed Height
2.7m
Min Height (guardrails folded)
2.0m
Ground Clearance
330mm
Platform Capacity (SWL)
454kg
Max Drive Height
10.0m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
4.5 km/h
Max Drive Speed (elevated)
0.3 km/h
Raise/Lower Time
50/60 seconds
Gradeability
35%
Max Outrigger Leveling (front to rear)
6º
Max Outrigger Leveling (side to side)
10º
Inside Turning Radius
2.7m
Outside Turning Radius
5.0m
Tyres
27 x 10.5 – 15 foam filled, non-marking
Controls
proportional joystick
Drive System
4 wheel drive
Power Source
Kubota D-902 water-cooled diesel 22.5hp Tier 4 Final
Weight
3,620kg
  • 4-wheel drive
  • 4 hydraulic outriggers with automatic levelling
  • Roll-out deck extension
  • Non-marking foam filled tyres
  • Proportional controls
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Manual lowering valve
  • Flashing amber light
  • Oscillating axle
  • Fold-down guardrails
  • Hour meter & on-board diagnostics display
  • Dual lanyard attachment points
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Cold Weather Package
Environmental hydraulic oil
Hydraulic generator 110V/240V
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.

Add to Quote
VIDEO
PHOTO GALLERY

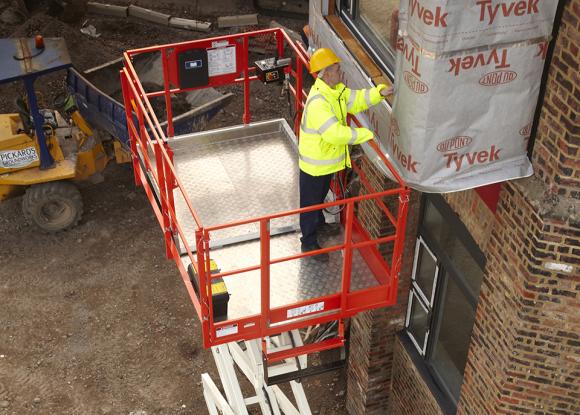

A large platform provides a spacious working area for personnel even with tools and materials

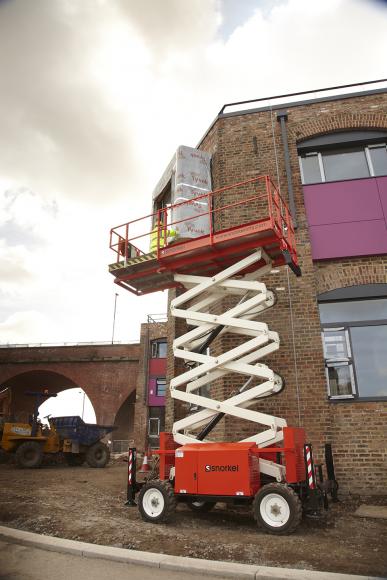

The Snorkel S3370RT has powerful 4 wheel drive - ideal for outdoor construction sites

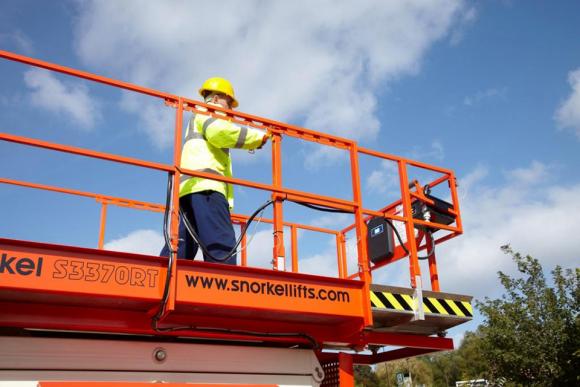

A smooth roll-out deck extension comes as standard on the Snorkel S3370RT

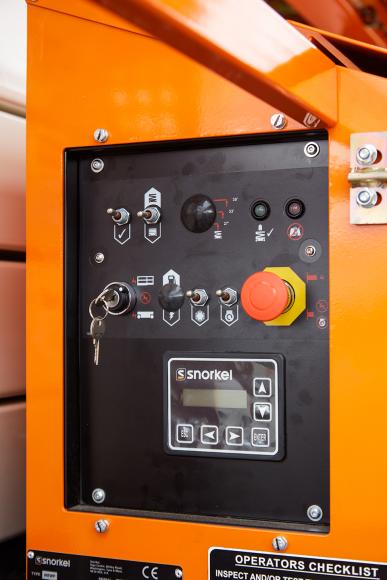

The lower control panel is recessed into the side module to protect it from damage and debris
Non-marking, high grip tires comes as standard

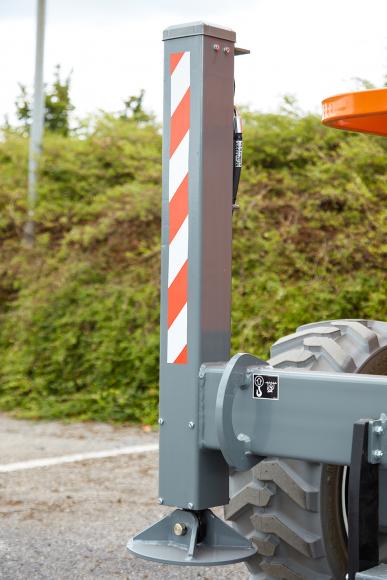

Auto-leveling outriggers, fitted as standard, are protected in steel when stowed to prevent damage

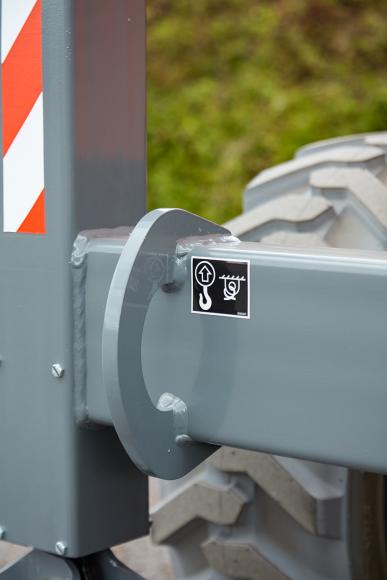

Large, heavy-duty steel tie-down and crane lifting points

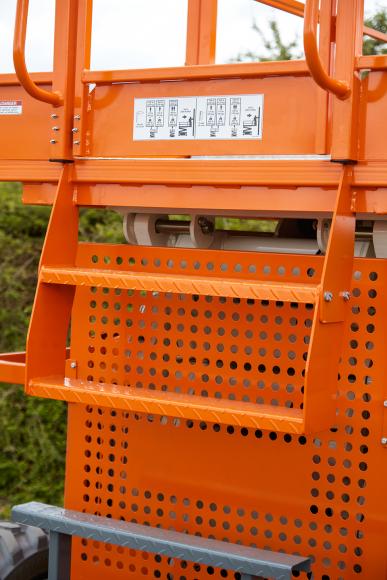

A heavy-duty diamond plate steel step enables easy access to the platform, yet is tough enough to handle the demands of the jobsite and rental industry

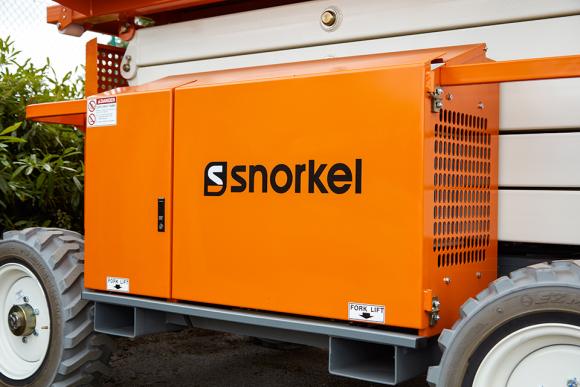

Twin-door side modules provide easy acces to all key components for service and maintenance

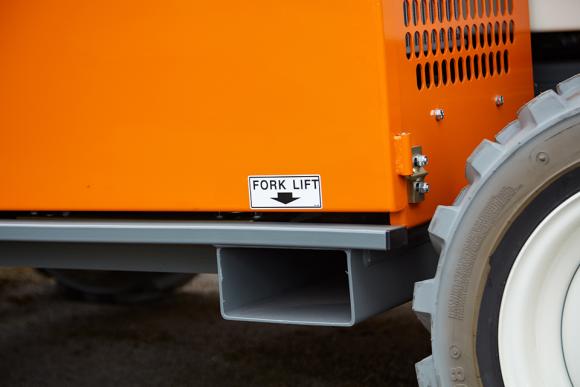

Forklift points are built into the chassis for maximum stability and a long working life

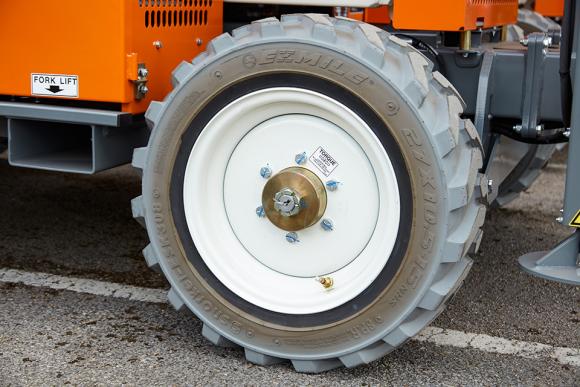

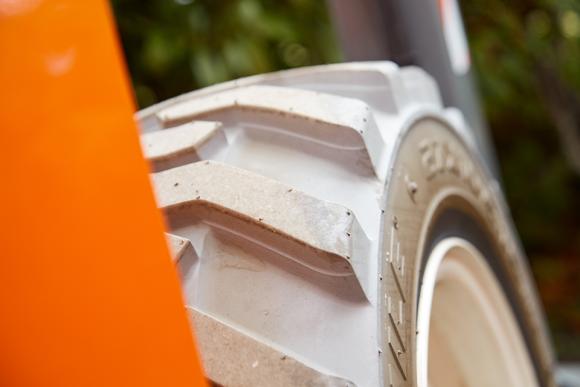

Non-marking, high grip tires are designed to provide the performance you need in outdoor terrain, yet leave no trace on concrete slab and other sensitive ground types

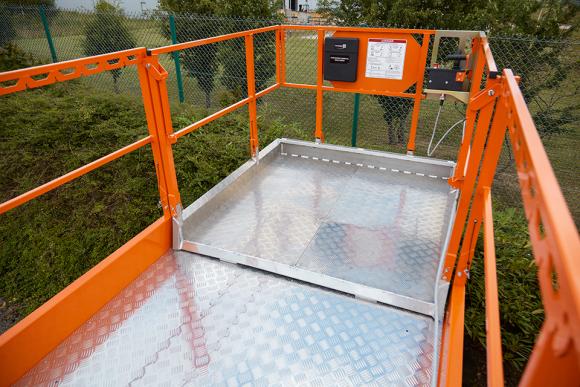

A diamond plate slide-out deck extends the working area, without the need for grip tape - a common replacement item

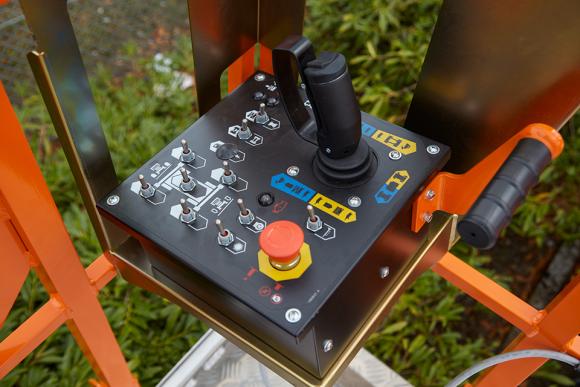

The upper control box features proportional joystick control with Snorkel™ trigger guard

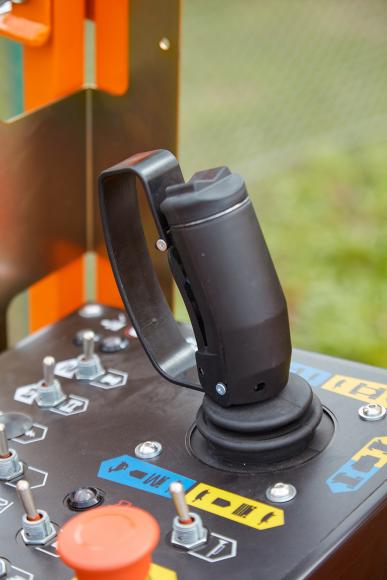

Snorkel trigger guard fits directly onto the joystick and provides an additional level of protection over the enable switch to reduce the likelihood of involuntary movement, without affecting normal operation of the controls
