S3215E
6.6m

Working Height

273kg

Platform Capacity

1,227kg

Weight

S3215E

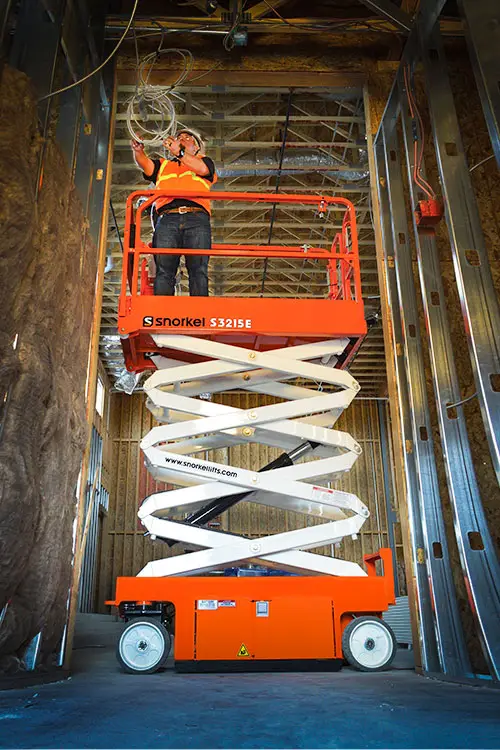

Built to handle the demands of the rental industry and the toughest job sites, this new Snorkel electric scissor lift is designed with a focus on low total ownership costs. Reliable, robust and simple lifts packed with innovative features designed to reduce downtime.

Max. working height
6.6m
Max. platform height
4.6m
Platform size (stowed)
0.72m x 1.62m
Platform size (extended)
0.72m x 2.53m
Extension Deck Length
0.91m
Overall length (with step)
1.78m
Overall length (without step)
1.73m
Overall width
0.81m
Minimum height (guardrails folded)
1.59m
Stowed height
1.9m
Ground clearance (stowed)
66mm
Ground clearance (elevated)
19mm
Platform capacity (SWL)
273kg
Max. drive height
4.6m
Max. wind speed
12.5m/s
Max. drive speed (elevated)
0.6km/h
Max. drive speed (stowed)
3.2km/h
Raise / lower time
20 / 36 seconds
Gradeability
25%
Inside turning radius
0.1m
Outside turning radius
1.63m
Tyres
12 x 4 non-marking solid rubber
Controls
Proportional
Drive system
2-wheel drive
Power source
24V DC battery electric
Charger
90 – 240V, 25amp
Weight
1,227kg
  • Roll-out deck extension with dual locks
  • Non-marking tires
  • Swing-out service trays
  • Saloon-door style entry gates
  • Descent alarm
  • All motion alarm
  • 2 persons indoors
  • 1 person outdoors
  • Proportional controls, including descent
  • Power line to platform
  • Loading pendant
  • Platform overload system
  • Flashing amber light
  • Hour meter & on-board diagnostics display
  • Integrated battery charger
  • Battery condition indicator
  • Crane & forklift points
  • Dual lanyard attachment points
  • Scissor stack roller slide plates (set of 2)
  • 2 year parts & labor, 5 year structural warranty
No options associated with this product.

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.
