6.0m

Lift Height (Forks Up)

max
272kg

Max. Load Capacity (14 in. load center)

151kg

Weight

ML20M

The Snorkel ML20M mini material lift raises standards in material lifting. Ideal for industrial and warehouse applications, a dual handle, shift-on-the-fly, two-speed winch quickly raises loads to increase productivity. A reduced height mast is designed to pass through a single doorway without tilting back. This lift is also built with durable aluminum for a long working life.

Lift height (forks up)
6.0m
Lift height (forks down)
5.5m
Stowed width
0.77m
Stabiliser width
1.63m
Stowed length
0.91m
Operating length
2.1m
Fork width (outside)
0.58m
Fork length
0.76m
Stowed height
5 ft 3 in
Ground clearance
60mm

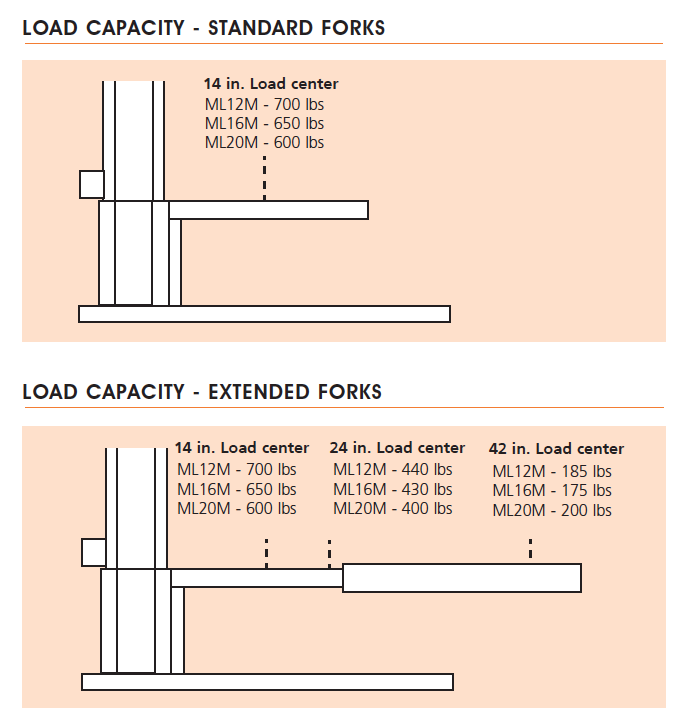

Max. load capacity (0.36m load center)
272kg
Max. load capacity (0.61m load center)
181kg
Max. load capacity (1.07m load center)
80kg
Min. load height
150mm
Winch (high speed)
13.1 cranks/m
Winch (low speed)
49.2 cranks/m
Weight
151kg
Specifications subject to change without notice. The equipment hereunder have been subject to limited testing, and any performance specifications and representations are the result of limited testing. Photos and diagrams are shown for illustrative purposes only. Snorkel makes no warranty, representation, or guarantee regarding the information contained herein or the suitability of its equipment for any particular purpose. It is the Buyer’s responsibility to independently determine suitability of any equipment or parts, and to test and verify the same. Refer to appropriate Snorkel operator’s manual for detailed instructions on the proper use and maintenance.
  • Stabilizers with non-marking swivel casters
  • Non-marking transport/loading wheels
  • Dual handle, two-speed shift-on-the-fly winch
  • Metal cable pulleys with sealed bearings
  • Heavy-gauge aluminum extrusions
  • Heavy duty non-marking casters
  • Crane attachment point
  • Cable guard
  • Mast brake
  • 2 year parts & labor, 5 year structural warranty
Adjustable forks
Boom
Fork extensions
Load platform
Pipe cradle
Smart latch
Special paint colors

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Metric)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production. To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour. Ahern Australia is authorised to carry out Snorkel warranty repairs. For further details, please visit our Warranty page.

Add to Quote
VIDEO
PHOTO GALLERY

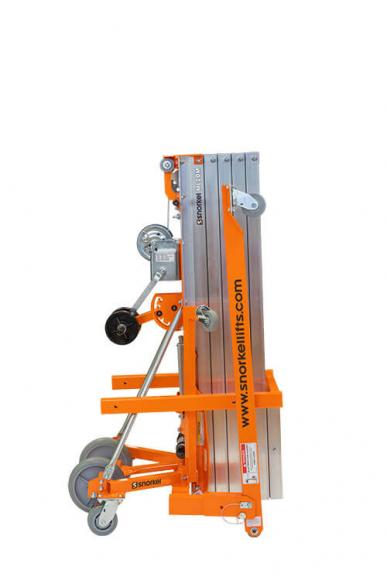

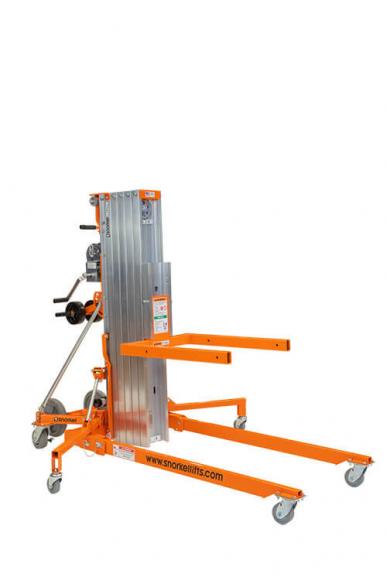

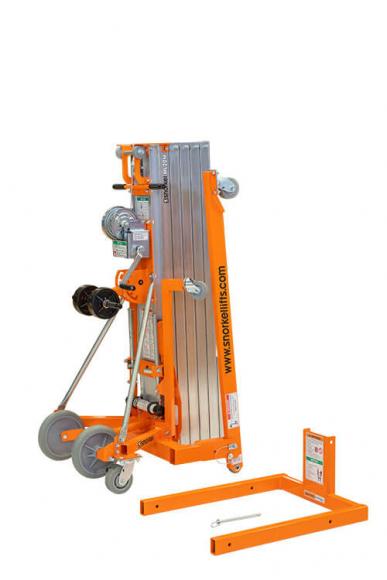

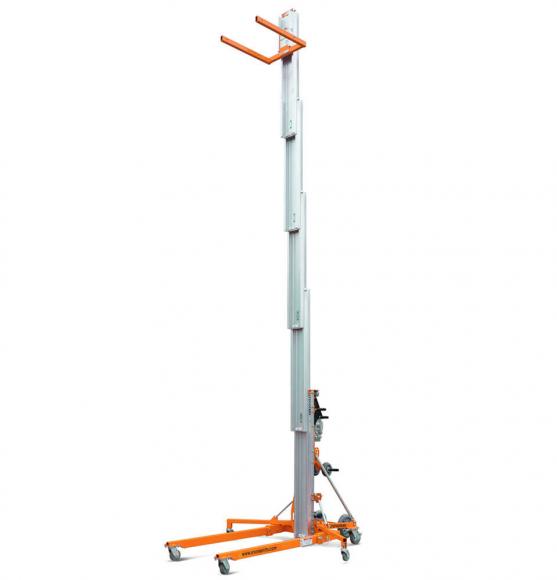

The Snorkel ML20M material lift
