C13 SPIDER LIFT
13.0m

Working Height

230kg

Platform Capacity

1,500kg

Weight

C13

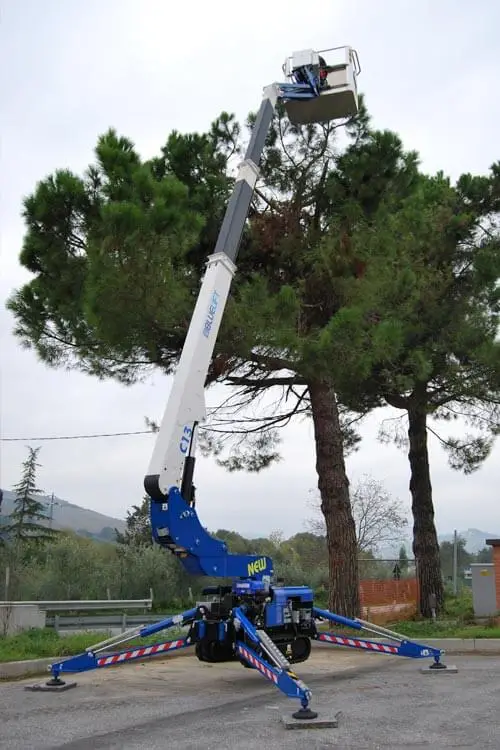

The Bluelift C13 is a compact and lightweight telescopic spider lift designed for exceptional manoeuvrability in tight or confined spaces. Its dependable performance and easy operation make it ideal for both indoor and outdoor access challenges.

Max. working height
13m

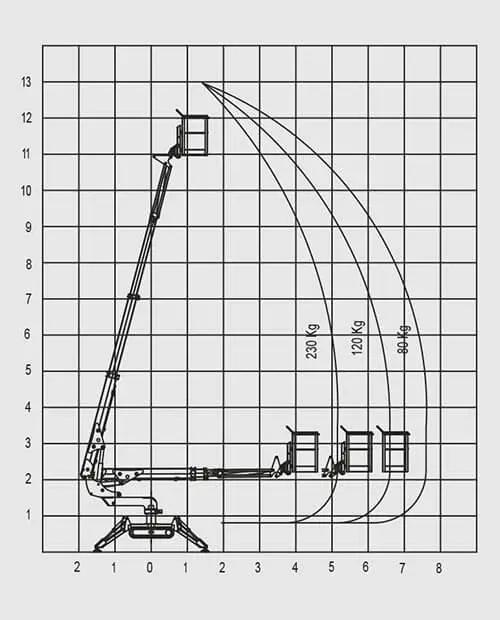

Max. horizontal outreach
5.15m / 230kg, 6.6m / 120kg, 7.5m / 80kg
Basket Capacity
230kg
Basket Dimension
1.3m x 0.7m x 1.1m
Turret Rotation
340˚
Overall Weight
1,500kg
Travel Speed
1.5km/h
Max. Gradeability
28%
Combustion Engine
Honda iGX
Electric Motor
230V – 2.2kW
  • Quickly removable aluminum basket
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Cable remote control with interactive and multi-lingual display
  • Moment limiting device
  • Automatic center position of turret
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Driving lateral slope alarm with safety stop
  • Driving possible with upper boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Hand pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
  • Produced according to EN280 norm and international safety regulation
  • All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.
