17.40
4T

Lift Capacity

16.4m

Lift Height

11,850kg

Weight

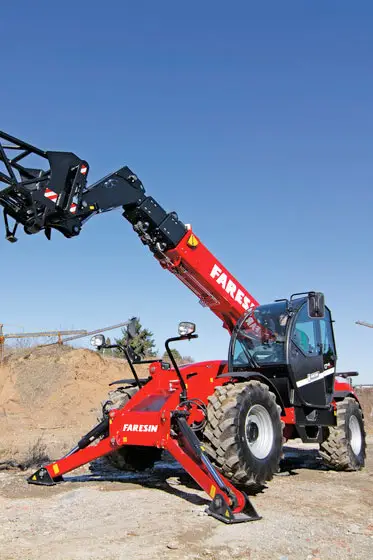

17.40 BIG

The Big Range series was designed especially for the construction sector. The structure of the boom built in two or three sections is designed to ensure maximum functionality even in routine maintenance operations. Thanks the use of front outriggers and side levelling, the machine is the ideal choice for all material handling operations in construction site areas.

Height
2500mm
Width
2331mm
Gauge
18620mm
Front Overhang
2300mm
Pitch
2950mm
Rear Overhang
1305mm
Length with Towing Hook
6555mm
Maximum Total Unladen Weight
11,850kg
Number of Extracting Sections
3
Maximum Capacity
4,000kg
Maximum Lifting Height
16.4m
Maximum Horizontal Boom Extension
12.6m
Boom Extension at Max Height
2.5m
Forks Swinging Angle
144˚
Hydraulic Oil Tank
150L
Diesel Oil Tank
120L
Connection For Equipment
FH
  • Queen Cab: comfort, visibility and ergonomics
  • Stage 3A tier 3 engines
  • Gear pump – 120 l/min@230 bar
  • Load sensing pump – 152l / min optional (standard on HLS)
  • When you want to reach the top without compromises
  • Chassis with levelling system and front outriggers
No options associated with this product.

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Snorkel GuardTM Brochure (PDF)

English

Emergency Descent Procedure

English

All Faresin Telehandlers come with a two-year full warranty, plus a 200-hour and five-year structural warranty. Please contact us for further details.
