SA18HB

  • Max. working height: 17.8 m
  • Max Horizontal Outreach:
    9.3 m | 7.5 m | 7.0 m
  • Basket capacity: 230 kg
  • Overall weight: 2200 kg

Download Specifications (PDF)

Download Blue Hybrid Fact Sheet (PDF)

  • Quickly removable aluminum basket
  • Basket rotation
  • i-Performing electric pump (patented) with auto Start/Stop system
  • 230V power outlet in basket
  • Cable remote control with interactive and multi-lingual display
  • Moment limiting device
  • Automatic center position of turret
  • Self Stabilizing system
  • Automatic START & STOP of engines and RPM control
  • Proportional and simultaneous electro-hydraulic controls
  • Proportional track drive with hydraulic breaking system
  • Double drive speed system with safety control
  • Driving lateral slope alarm with safety stop
  • Driving possible with jib boom raised (with selector)
  • Interblock outriggers/booms
  • Emergency push-button with engine stop
  • Simple emergency lowering procedure
  • Hand pump for the emergency lowering of platform
  • Covers on outrigger cylinder’s piston rod, oil tank and emergency controls
  • Modem connection plug for diagnosis/software upgrading in remote
  • Produced according to EN280 norm and international safety regulation
Max Working Height

Max Horizontal Outreach

7.0 m/230 kg, 7.5 m/200 kg, 9.3 m/120 kg

Basket Capacity

230 kg

Basket Dimension

1.3m x 0.7m x 1.1m

Turret Rotation

Overall Weight

2200 kg

Travel Speed

1.5 km/h

Max Gradeability

28%

Combustion Engine

Honda iGX

Electric Motor

230V – 2.2 kW

Options

  • Radio remote control
  • Air/Water tube
  • Diesel engine HATZ 1B40 with automatic RPM control and Automatic START & STOP
  • 110V power
  • Blue Lithium pack*
  • Blue Hybrid pack*
  • No-marking crawlers
  • Track width adjusting system*
  • Go-Home function
  • Custom paint work
* This option increase the overall weight of platform

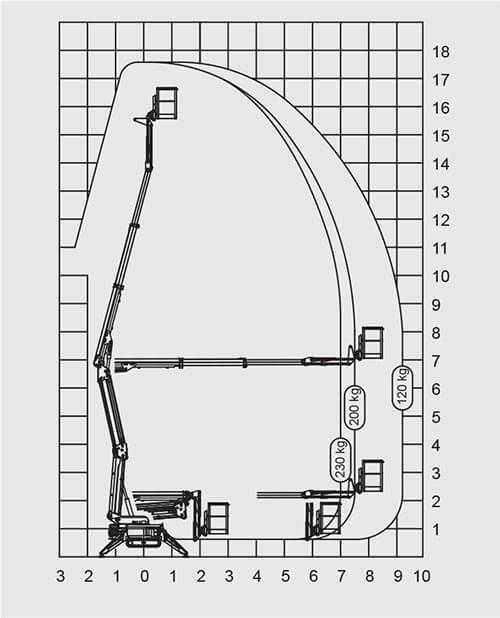

Working Envelope

SA18HB Working Envelope

All Bluelift products are sold with a one year warranty on parts and labour and two years warranty on the electronics card.

For more information, contact your sales representative.
